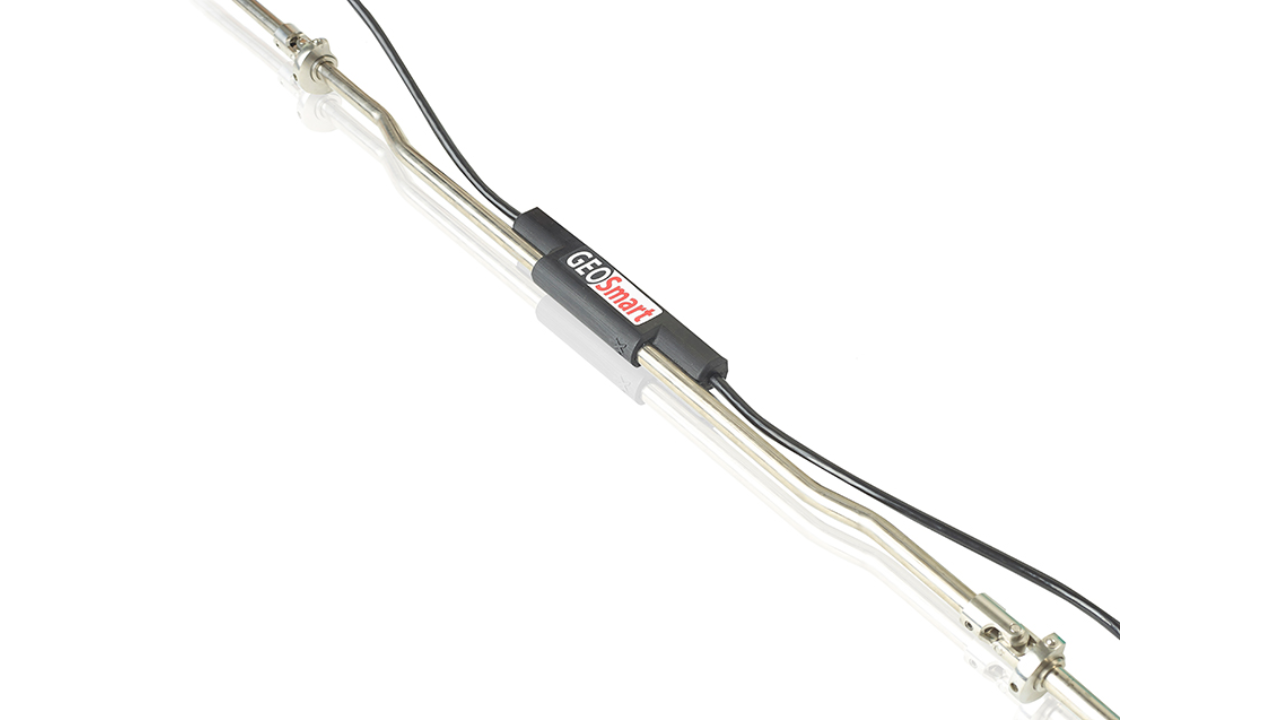

GEOSmart is an in-place inclinometer consisting of closely spaced MEMS (Micro-Electro-Mechanical Sensors) approximately 0.6m apart that are mounted on stainless steel tubing with a single cable running the length of the string which reduces the number of cables protruding from the top of the borehole. It is comprised of a biaxial probe, cable reel, and an ultra-rugged Field Tablet supplied with ‘In-Port Pro’ data capture software.
GEOSmart is installed in either Schedule 40 or 70mm casing and is used to monitor displacement in geotechnical applications including;
Diaphragm walls
Embankments
Retaining walls
Landslides
Potential slope failures.
Due to its lightweight robust construction with joints capable of bending up to 90º, the GEOSmart system is conveniently transported to the site and can be installed by one site technician.
Watch our video below and contact us for more information.
